Gateron Mountain-Top Linear Switches

Choose how many switches you need:

Pack of 10 Switches
Sale price$6.00
In stock

The switches are sold in packs of 10. Quantity 1 = 10 switches.

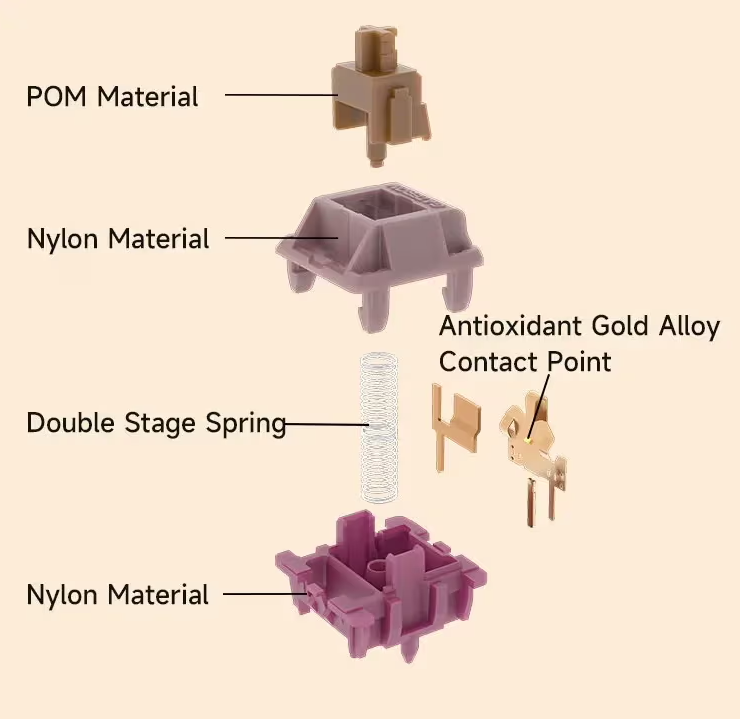

Designed for the esports user, the Mountain-Top is a new fast travel linear from Gateron. Featuring a more concentrated sound on the stem bottom out, antioxidant gold alloy contact point, stronger pins, and a double stage spring with smooth rebound.

Specifications:

  • Manufactured by Gateron
  • Fast travel Linear
  • Quantity 1 = pack of 10 switches
  • Operation force: 40+10gf
  • Pre travel: 1.2+0.3mm
  • Total travel: 3.4mm Max
  • Stem material: POM
  • Top housing material: Nylon
  • Bottom housing material: Nylon
  • Spring: 22mm double stage spring
  • LED Support: MD ​or Plug In
  • Pre-lubed: Yes
  • Pins:5-Pin

Note that these are PCB mount switches. In order to use them in 3-pin hotswap boards (plate mount) you will need to clip the 2 extra plastic pins (very easy to do). Please double check your board and confirm compatibility before buying.

Technical Data

brand Gateron
actuation 30g
bottom housing material Nylon
bottom out force 40g
factory lubed true
hall effect false
mount type PCB Mount (5 pin)
pre travel 1.2 mm
silent false
stem material POM
switch type Linear
top housing material Nylon
total travel 3.4 mm
