Gateron Zero Degree 0° Silent Silver Linear Switches

The switches are sold in packs of 10. Quantity 1 = 10 switches.

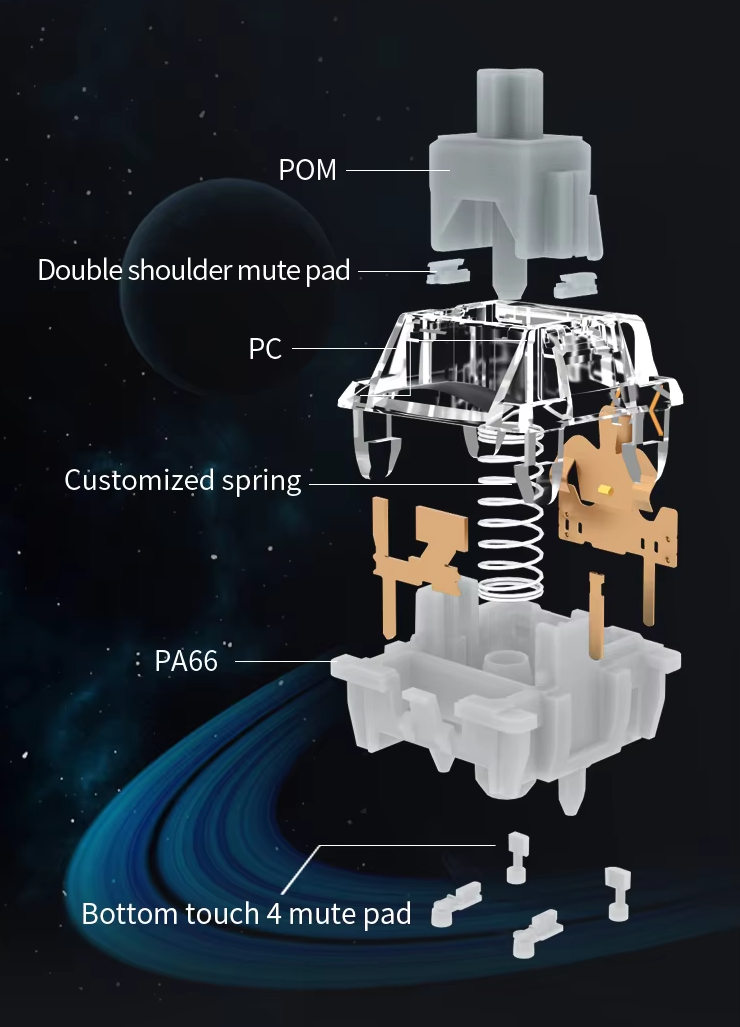

Gateron Zero Degree 0° Switches are the silent linear version of Gateron's Dual Rail line up. In order to make the switch silent, Gateron adds 2 mute pads to the top housing and four mute pads to the bottom housings. These are placed in contact points during the keypress to minimize noise while the dual-rail stem ensures a smooth travel.

Specifications:

• Manufactured by Gateron
• Pins: 5-Pin PCB mount
• Pre-lubed: Yes
• Style: Silent Linear
• Stem: POM
• Top Housing: PC
• Bottom Housing: Nylon
• Operation Force: 45g
• Pre Travel: 1.8mm
• Total Travel: 3.6mm
• Spring: 22mm extended spring

Note that these are PCB mount switches. In order to use them in 3-pin hotswap boards (plate mount) you will need to clip the 2 extra plastic pins (very easy to do). Please double check your board and confirm compatibility before buying.
